Review the recommendations provided in the pre-installation guide as well as the manual for your machine.
-
The chimney should have a diameter: W6-150mm W15-200mm.
-
If your roaster is located inside a building, it is advisable to refrain from connecting the chimney of the machine to the general chimney flues of the building.
-
The chimney should be separate for each machine and have a direct outlet to the outside.
-
The use of a flexible pipe as a chimney is not recommended as it may cause problems in the machine.

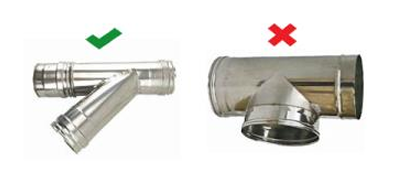

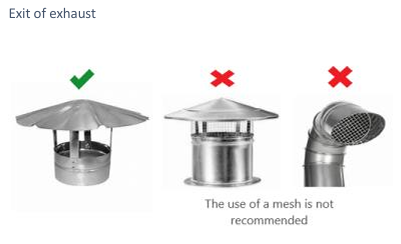

The following is suggested; however always check with your chimney specialist to see if this is possible for the space where your roaster will be located.
