Connect your Roaster with a laptop / computer
This video explains how to configure the LAN adapter settings in Windows 11 to establish communication between your computer and the coffee roaster.
This video shows you how to configure your LAN adapter settings in Windows 11.
Network Configuration
Your computer's IP address must be within the same network range as the coffee roaster. To determine the correct settings, please refer to the tables below.
Roasters Manufactured After 2017
| Model | Roaster IP Address | Subnet Mask |
|---|---|---|
| WPG | 172.30.30.10 | 255.255.255.0 |
| W1 | 172.30.30.30 | 255.255.255.0 |
| W6 / W15 | 172.30.30.50 | 255.255.255.0 |
| W30 | 172.30.30.70 | 255.255.255.0 |
| W45 / W60 | 172.30.30.90 | 255.255.255.0 |
| W140 | 172.30.30.110 | 255.255.255.0 |
Roasters Manufactured Before 2017
| Model | Roaster IP Address | Subnet Mask |
|---|---|---|
| WPG | 192.168.2.10 | 255.255.255.0 |
| W1 | 192.168.2.30 | 255.255.255.0 |
| W6 / W15 | 192.168.2.50 | 255.255.255.0 |
| W30 | 192.168.2.70 | 255.255.255.0 |
| W45 / W60 | 192.168.2.90 | 255.255.255.0 |
Example

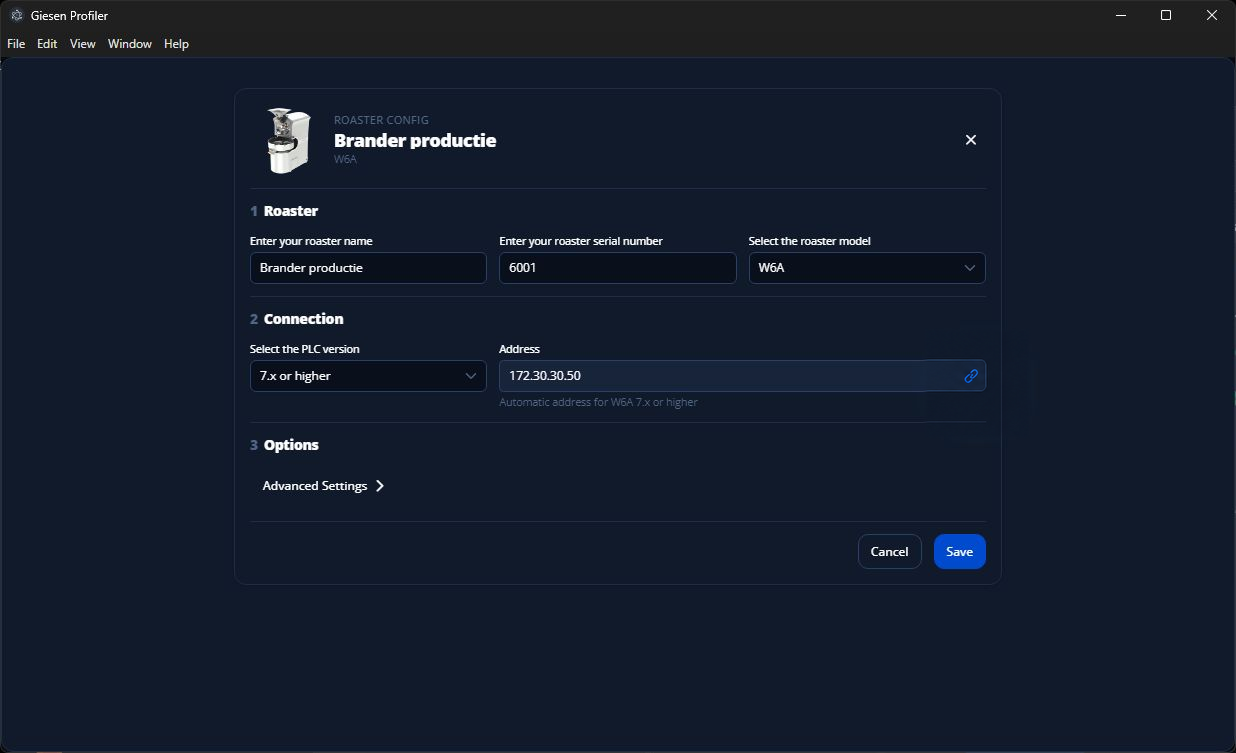

If your roaster IP address is 172.30.30.50, you can configure your computer with an IP address such as 172.30.30.100 and a subnet mask of 255.255.255.0.
The first three sections of the IP address must match the roaster's IP address. The last section must be unique and should not be the same as the roaster's address.
Once the LAN adapter is configured correctly, your computer should be able to communicate with the coffee roaster.
